Metcut 250 cutting machine
Metcut 250 cutting machine

Metcut 250 cutting machine

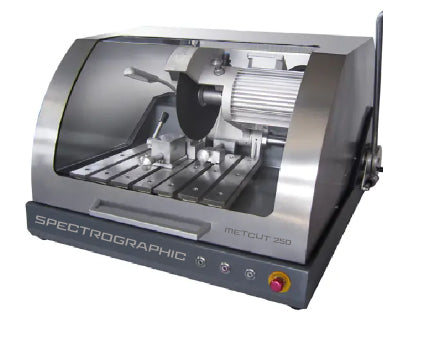

Simple but robust designed bench top sample cut off machine. Ideal for cutting samples up to 50mm in diameter. Delivered with large coolant tank on wheels (50L).

Has a key operated Schneider interlock fitted for operator safety


  • Input voltage 380V/50HZ/three phase
    Input / Cutting power 2.4KW/ 2.2 KW
    Spindle rotation 2800r/min
    MAX cutting diameter Φ60mm
    Cutting wheel size Φ250×1.5×25.4mm,optional 32mm hole
    Cutting axis Only manual Z axis, NO Y,X axis
    Dimension/ Net weight 740mm×620mm×450mm, 82kg
    Hole for long sample Two holes at the left side and right side
    Pump & tank 60L, 570*440*590mm(L*W*H) including water pump
    The coolant flow rate 50L/min

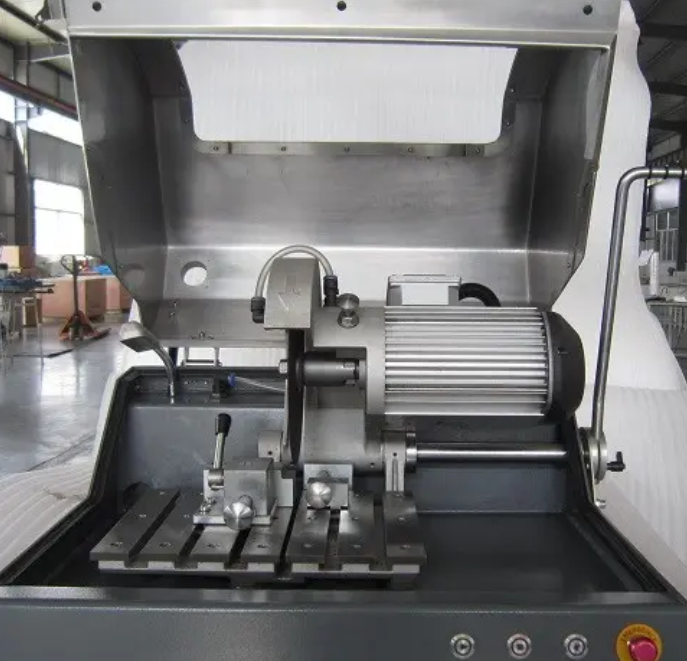

    Cutting chamber inside Powerful LED light
    T-slots on the cutting table 12mm
    Touch pad control panel No, button control
    Operation type Manual
    optional
    Cabinet / Transversal worktable (X axis) / Schneider safety lock / filter
    type water tank
