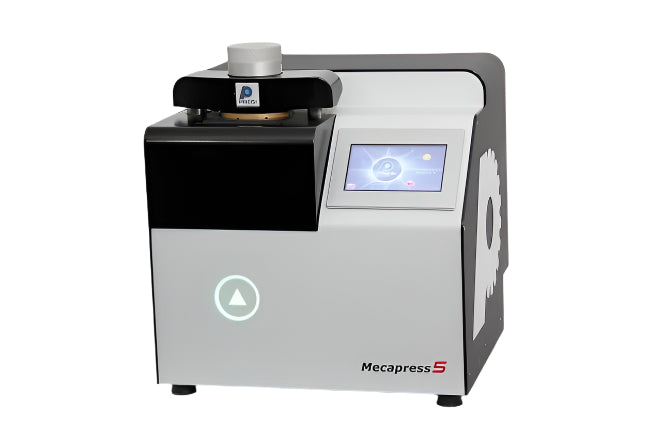

MECAPRESS 5 MOUNTING PRESS

Modular automatic mounting press
Option to add up to 2 additional mounting units
Water cooling system
Adjustable heating temperature from 20° C to 220° C
Parameters adjustable via touchscreen
Pre-programmed processes based on mold diameter
Storage capacity for 100 processes

Features
Brochure

Easily interchangeable molds with automatic diameter recognition
Maximum mold diameter: 50 mm
Machine status indicated by LED light signal
Safety sensors
Hydraulic technology
Cooling system with optimized water consumption
Option to operate in closed-loop mode
NO MOLD INCLUDED - must be added as an option
Dimensions:
W: 525 mm - D: 475 mm - H: 565 mm - Weight: 80 kg
Power Supply: 2.5 kW - 230V - Single phase - 50Hz/60Hz - 16A
